OBDII Output Gasoline values from 8.0:1 to 20.0:1 AFR
OBDII Output Lambda values from .55 to 2.00
0-5V Output Gasoline values from 8.5:1 to 18.0:1 AFR (Requires Wiring)
0-5V Output Lambda values from .58 to 1.23 (Requires Wiring)
0-5V Output E85 values from 5.7:1 to 12.0:1 AFR (Requires Wiring)
0-5V Output Ethanol values from 5.2:1 to 11.0:1 AFR (Requires Wiring)
0-5V Output Methanol values from 3.75:1 to 8.0:1 AFR (Requires Wiring)
X-SERIES WIDEBAND UEGO CONTROLLER FEATURES:
Patented X-Digital Technology makes it the Fastest Responding Wideband AFR Controller (Patent # 9,575,030)
OBDII pass-through provides AFR readings through the factory ECU CAN-bus – Ideal for users with piggyback programmers or open source tuning software

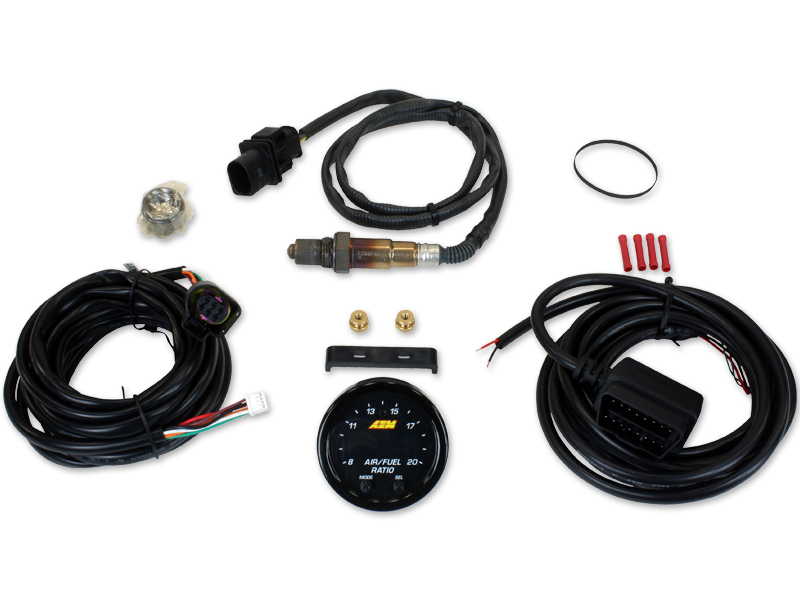

Includes Bosch 4.9LSU wideband UEGO sensor and OBDII pass-through connector
Use the factory 02 calibration or free-air calibrate using buttons on faceplate
Compatible with vehicle/system voltages up to 16V
Optional outputs for 0-5V & RS232 for data logging and feedback control (requires wiring)
Can display AFR values in hundredths of %
52mm gauge diameter and slim 0.825” gauge depth
Gauge cup depth only .200” deep!
Auto dimming feature
User configurable display via buttons on the gauge face for changing AFR values, Lambda and O2%, 3- or 4-digit display and OBDII output settings (if necessary)
Black bezel and black dual faced faceplate included (silver bezel/white gauge option sold separately, PN 30-0300-ACC)
